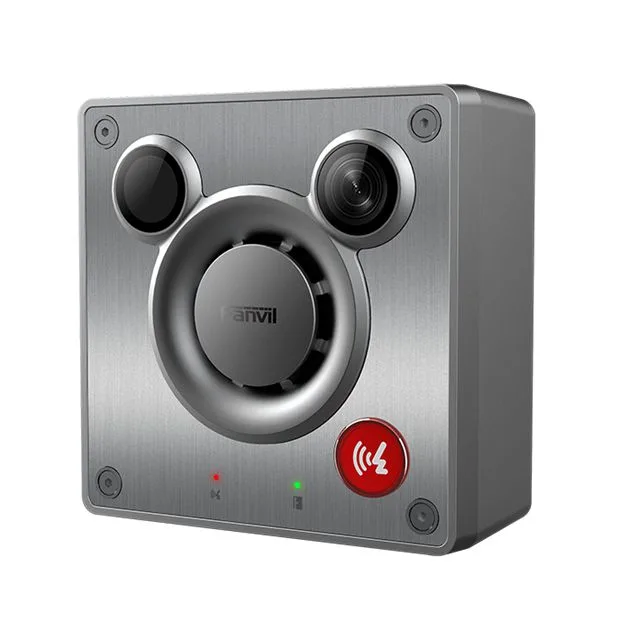

Fanvil A11V Outdoor Video Intercom

The Fanvil A11V is a rugged outdoor SIP video intercom designed for secure entrance communication and video calling. It features a 4MP HD camera, infrared lighting, HDR support, 5W speaker, dual-microphone noise reduction and remote voice pickup up to 5 metres. With IP66 weather protection, IK10 vandal resistance, PoE+, SIP support, TF card recording and flexible input/output ports, it is ideal for gates, entrances and industrial sites.

Note : For large projects, Please contact us to access Special Project Pricing.

    Category: Brand:


    Description

    Fanvil A11V Outdoor Video Intercom

    The Fanvil A11V is a rugged SIP video intercom designed for outdoor access points, security entrances and demanding communication environments. It combines HD video, clear two-way audio and durable construction in one compact device.

    HD Video Communication

    The A11V features a built-in 4MP HD camera for video calls and entrance monitoring. It also includes infrared lighting and HDR support, helping improve visibility in low-light and high-contrast conditions. With support for 720p and 1080p video, the A11V provides clear video communication for doors, gates and access points.

    Clear Outdoor Audio

    The built-in 5W speaker and turbine speaker design deliver clear and powerful audio. Dual-microphone noise reduction helps capture voices more accurately, even in noisy environments. In addition, remote pickup can reach up to 5 metres, allowing the intercom to capture speech from a useful distance.

    Intelligent Audio Processing

    The Fanvil A11V uses AEC, ANR, AGC and AVC speech algorithms to improve voice quality. These functions help reduce echo, control background noise and keep speech levels clearer during calls. This makes the device suitable for busy entrances, industrial areas and public access points.

    Rugged Weatherproof Construction

    The A11V uses a stainless steel panel with an integrated aluminium alloy body. Its IP66 rating protects against dust and water, while IK10 vandal resistance helps protect the intercom from impact and misuse. The device is built for reliable outdoor operation in harsh environments.

    Flexible SIP Integration

    The Fanvil A11V supports 2 SIP lines, speed dial, video calling, intercom, multicast and auto-answering. It is compatible with SIP-based platforms including Asterisk, BroadSoft, 3CX, Metaswitch, Elastix and Avaya.

    Management and Interfaces

    The A11V supports PoE+, DC power input, line-out audio, switch signal input/output, tamper alarm switch and TF card support. It also includes web management, auto-provisioning, firmware upgrade support, HTTP API, Action URL and Active URI for flexible system integration.

    Key Features
    • Outdoor SIP video intercom
    • 4MP HD camera
    • Infrared lighting and HDR support
    • 720p/1080p video support
    • 5W speaker with turbine speaker design
    • Dual-microphone noise reduction
    • AEC, ANR, AGC and AVC speech algorithms
    • Remote pickup up to 5 metres
    • 2 SIP lines and speed dial support
    • Video calling, intercom and multicast
    • MP3 broadcasting and TF card support
    • IP66 waterproof and dustproof rating
    • IK10 vandal-resistant construction
    • Stainless steel panel and aluminium alloy body
    • PoE+ and DC 12V–24V power support
    • Web management and auto-provisioning

    Fanvil A11V Datasheet
