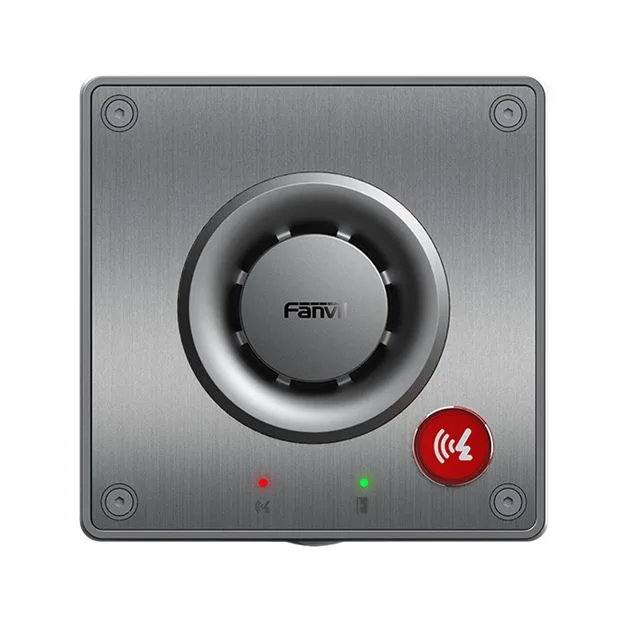

Fanvil A11 Outdoor Audio Intercom

The Fanvil A11 is a rugged outdoor SIP audio intercom designed for clear two-way voice communication in harsh environments. It features a 5W high-power speaker, turbo sound chamber, dual-microphone noise reduction, remote voice pickup up to 5 metres, IP66 weather protection and IK10 vandal resistance. With PoE+, SIP compatibility, TF card support, line-out audio and flexible input/output ports, it is ideal for entrances, gates, industrial sites and public areas.

Note : For large projects, Please contact us to access Special Project Pricing.

    Category:


    Description

    Fanvil A11 Outdoor Audio Intercom

    The Fanvil A11 is a rugged SIP audio intercom designed for reliable outdoor communication in demanding environments. It combines powerful audio, intelligent voice processing and durable construction, making it suitable for entrances, gates, warehouses, factories, campuses, public facilities and security applications.

    Clear Two-Way Audio

    The A11 features a 5W high-power speaker with a turbo sound chamber acoustic design. This helps deliver clear and powerful voice communication for outdoor intercom use. In addition, advanced dual-microphone noise reduction helps capture speech more clearly in noisy or open environments.

    Intelligent Voice Processing

    The Fanvil A11 uses AEC, ANR, AGC and AVC speech algorithms to improve call quality. These technologies help reduce echo, manage noise and maintain clear voice levels during communication. Remote pickup can reach up to 5 metres, allowing the device to capture speech from a practical distance.

    Rugged Outdoor Design

    The A11 is built with a stainless steel panel and integrated aluminium alloy body. This provides strong corrosion resistance and reliable protection for outdoor use. Its IP66 rating protects against dust and water, while IK10 vandal resistance helps protect the unit from impact and physical damage.

    Flexible SIP Integration

    The Fanvil A11 supports 2 SIP lines, speed dial, intercom calling, multicast and auto-answering. It is compatible with major SIP-based IP PBX, softswitch and IMS platforms, including Asterisk, BroadSoft, 3CX, Metaswitch, Elastix and Avaya.

    Management and Interfaces

    The A11 supports web management, auto-provisioning, firmware upgrades, HTTP API, Action URL and Active URI. It also includes PoE+, DC power input, line-out audio, short circuit input/output, a tamper alarm switch and a TF card slot for recording and preset broadcasts.

    Key Features

    • Outdoor SIP audio intercom
    • 5W high-power speaker
    • Turbo sound chamber acoustic design
    • Dual-microphone noise reduction
    • AEC, ANR, AGC and AVC speech algorithms
    • Remote pickup up to 5 metres
    • 2 SIP lines and speed dial support
    • Intercom, multicast and auto-answering
    • MP3 broadcasting and TF card support
    • IP66 waterproof and dustproof rating
    • IK10 vandal-resistant construction
    • Stainless steel panel and aluminium alloy body
    • PoE+ and DC 12V–24V power support
    • Line-out audio and short circuit input/output
    • Web management and auto-provisioning
    • Fanvil A11 outdoor audio intercom features 5W speaker, SIP support, 5m pickup, PoE+, IP66 protection and IK10 vandal resistance.

    A11 Datasheet
