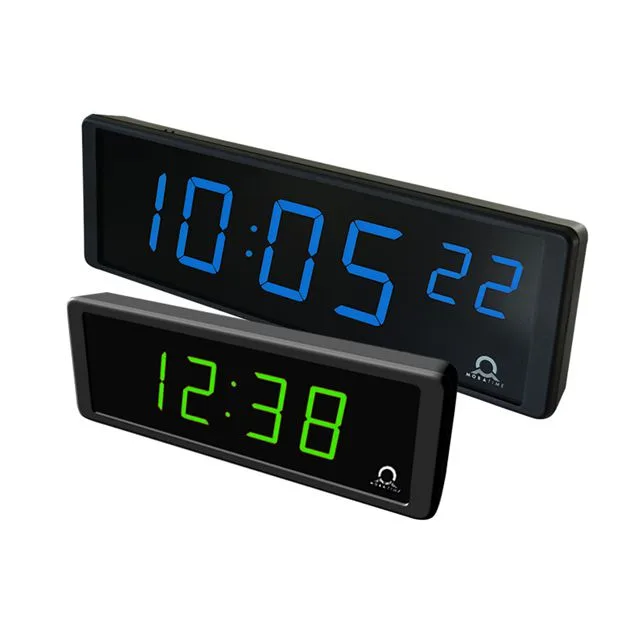

Mobatime ECO-DC Series Digital Indoor Clock

Elegant thin ABSplastic housing in black
High-luminance 7-segment LED display
Wide 160° viewing angle
IP54 protection as standard
Time, date, temperature, humidity and pressure display options
Automatic or manual brightness control
Stopwatch and countdown functions
NTP multicast or unicast synchronisation
PoE or mains-powered options
IPv4 and IPv6 network support
Web interface configuration
Autonomous quartz operation with ±0.1 sec/day accuracy
Configurable time zones
RTC backup via supercapacitor
Available in 4 digit ( Hours & Minutes ) or 6 digit ( HMS )format
LED Colour Options – Red, Yellow, Green, White or Blue

Note : For large projects, Please contact us to access Special Project Pricing.

Categories: IP Digital Clocks, Synchronised Time & Message Display, Synchronised Time & Message Display for Warehouses, Synchronised Time for Schools ensures accurate time on all clocks, Synchronised Time Management System Brand: Mobatime

Description

Mobatime ECO-DC series are digital clocks in 7-segment LED technique at an economical price, designed in an elegant and slim case, for time, date, or alternating time/date display.

Display

• continuous display of time, date, temperature or stopwatch
• alternating display of time, date, calendar week, temperature, humidity, and atmospheric pressure, with customizable intervals from 0-60 seconds for each display
• manual or sensor-controlled automatic display brightness adjustment
• wide viewing angle (160°)
Time
• 12/24 hour cycle
• with or without leading zero
• AM/PM indication for 12 hour cycle
Date
• with or without leading zero
Temperature
• in °C or °F

Housing

• clock housing made of black ABS plastic
• anti‑reflection front cover made of plexiglass, including a filter layer for optimal readability
• push buttons on the back of the housing

Stopwatch

• counting up from zero, up to 24 hours
• counting down from a predefined time value, with stop at zero, automatic restart from predefined time or counting into negative values
• display of intermediate time values, display “freeze”
• counting in steps of 1 day, 1 minute, 1 second
• or 1/100 seconds
• possibility to connect another display unit
• possibility of parallel switching over into the time and date or temperature display mode

Configuration

• setting of the clock parameters, as well as time, date, and stopwatch control by means of push buttons or IR remote controller; stopwatch can additionally be controlled via big red button

Synchronisation

• autonomous operation with internal quartz base
• accuracy ±0.1 s/day at constant temperature – software trimming
• possibility to configure any time zone
• NTP multicast or unicast synchronization, powered over Ethernet (PoE) or mains
• MOBALine, impulse line, DCF or IRIG‑B, mains powered
• RTC backup by means of supercapacitor (lithium battery on request)

Network

• IPv4 and IPv6 support
• DHCPv4, DHCPv6 / manual configuration of the clock parameters or configuration via web interface
• DHCPv4, DHCPv6 private strings allow easy configuration of clock parameters when connected to LAN
