Fanvil PA1 Paging Gateway

Flexible Audio Amplification: Supports 4–8 Ω external speakers and delivers up to 30 W with a suitable powersupply, meeting sound reinforcement needs in different spaces.
IP Paging: Supports SIP registration and multicast reception. It can work with the A330i or a paging server for easy integration into IP paging systems.
Multiple Audio Sources: Provides Line-in and Line-out interfaces for flexible connection to local audio sources and external audio devices.

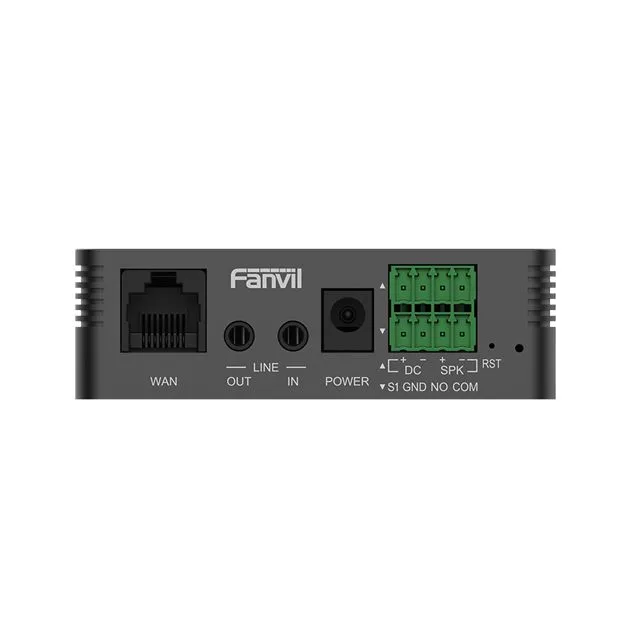

Security System Integration: Provides one dry-contact input and one relay output for connection to external switches and linked security devices.
Flexible Deployment: Supports PoE and 12–24 VDC power. When both are connected, DC power takes priority, providing flexibility for different installation environments.

For large projects or quantity orders, please email us for Project Pricing.
We also provide pre-shipment programming, installation & remote support services, please email us for a Quote.

Description

Fanvil PA1 Paging Gateway is a compact device designed for paging and security applications. It uses standard SIP protocols for media streaming and connects to external peripherals to enable audio paging, one-touch intercom calls, and other practical functions. Its compact design supports quick deployment in a wide range of environments and custom integration projects.

Flexible Audio Amplification: Supports 4–8 Ω external speakers and delivers up to 30 W with a suitable power supply, meeting sound reinforcement needs in different spaces.
IP Paging: Supports SIP registration and multicast reception. It can work with the A330i or a paging server for easy integration into IP paging systems.
Multiple Audio Sources: Provides Line-in and Line-out interfaces for flexible connection to local audio sources and external audio devices.
Security System Integration: Provides one dry-contact input and one relay output for connection to external switches and linked security devices.
Flexible Deployment: Supports PoE and 12–24 VDC power. When both are connected, DC power takes priority, providing flexibility for different installation environments.
