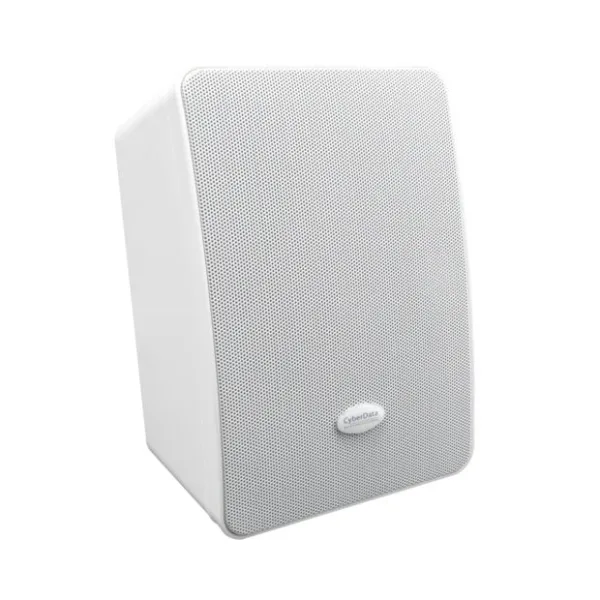

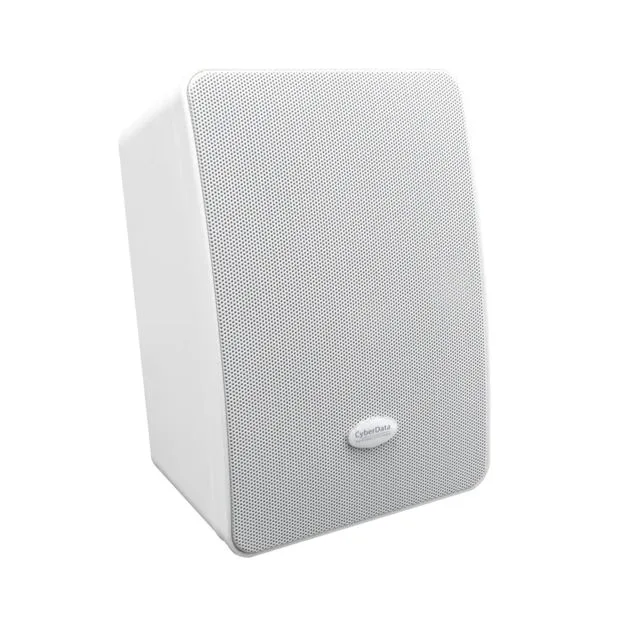

Cyberdata 011487 Multicast Wall Mount Speaker

Support for security code access for SIP paging
Autoprovisioning via HTTPS
HTTPS web based configuration
HTTP Command Interface
802.11q VLAN tagging
Configurable event generation for device health and status monitoring
Sealed network cable gland
User-uploadable tones and up to 9 page messages
Digital volume control
Loud ringer function – second SIP extension
10 channel prioritized Multicast ports
Built-in diagnostics
Delayed page support – buffer call
Cisco SRST

We offer online price beat guarantee, Please contact us for price or add item to Quote Request.

Note : For large projects, Please contact us for special project pricing.

Categories: Cyberdata SIP Paging, SIP Speakers & Ringers Brand: Cyberdata

Description

CyberData 011487 Multicast Wall Mount Speaker is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product. It easily connects to your PoE network with a single Ethernet cable connection. The speaker is capable of playing messages from any multicast source like the CyberData SIP Paging Server with Bell Scheduler (PN#011146). The device’s streamlined case and included mounting hardware offers an easy installation in almost any environment.

Features

Support for security code access for SIP paging
Autoprovisioning via HTTPS
HTTPS web based configuration
HTTP Command Interface
802.11q VLAN tagging
Configurable event generation for device health and status monitoring
Sealed network cable gland
User-uploadable tones and up to 9 page messages
Digital volume control
Loud ringer function – second SIP extension
10 channel prioritized Multicast ports
Built-in diagnostics
Delayed page support – buffer call
Cisco SRST

Specifications

Ethernet I/F	10/100 Mbps
Protocol	SIP RFC 3261 Compatible
Power Input	PoE 802.3at or 802.3af
Audio Output	802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz 802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz
Payload Types	G.711 a-law, G.711 µ-law, and G.722
IP Rating	IP66
Operating Range	Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing
Storage Temperature	-40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude	Up to 15,000 ft. (4573 m)
Dimensions*	Length: 14.404 in. [366 mm] Width: 10.630 in. [270 mm] Height: 6.772 in. [172 mm] (without stand) Height: 9.291 in. [236 mm] (with stand)
Weight Boxed Weight	6.6 lbs. [3.0 kg] 8.8 lbs. [3.99 kg]
Compliance	CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty	2 years limited
Part Number	011457
